What Door Hardware Should a 5-Star Hotel Guest Room Door Be Equipped With? Complete Specification List & Standard

A 5-star hotel guest room door is more than an entrance—it is a security barrier, a soundproof shield, and a fire-rated assembly all in one. The door hardware specified for these doors determines guest safety, comfort, and the hotel‘s compliance with life-safety codes.

For a 5-star hotel, guest room door hardware is not a collection of accessories. It is a system—engineered to work together as a complete “fire door assembly” that must pass rigorous testing and certification-. Here is the complete specification list every hotel developer, architect, and facility manager needs to know.

1. Door Specifications: The Foundation

Before selecting any door hardware, the door itself must meet baseline requirements:

Door thickness: Minimum 45mm solid-core construction—no hollow cores allowed-

Sound insulation: Minimum 40dB acoustic rating-

Door dimensions: 880–900mm wide × 2110–2190mm high-

Fire rating: Minimum 20-minute fire resistance-

Sealing: Soundproof bumpers between door and frame-

These specifications ensure the door hardware mounted on them—hinges, locks, closers, and seals—can perform as intended.

2. Complete Guest Room Door Hardware Checklist

2.1 Electronic Door Lock System

Every 5-star guest room requires an electronic card lock system with:

Sensing: Magnetic card reader with audit trail capability

Networking: Online connectivity for real-time status monitoring

Master keying: Grand master and emergency master key functions

Battery life: 5+ years without recharging

Latch type: Deadlocking latch bolt with automatic deadlocking plunger-

ANSI/BHMA Standards: Grade 1 commercial grade required-

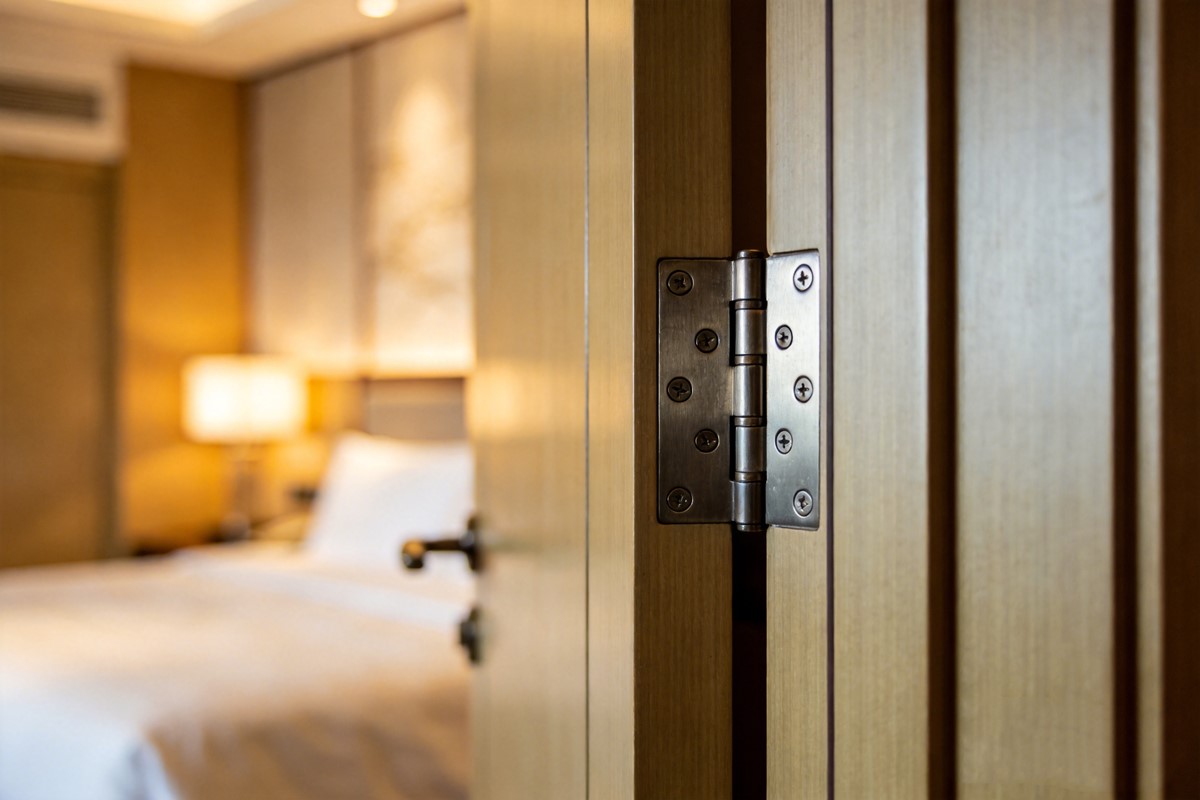

2.2 Door Hinges

Guest room doors require three 12-inch hinges-:

Material: 304 stainless steel for corrosion resistance

Opening angle: 180° full swing

Standard: ANSI/BHMA A156.1 Grade 1—tested to 2,500,000 cycles-

Quality hinges are the invisible backbone of every door. At YALIS, we treat every hinge as an opportunity to improve how people interact with their spaces-.

2.3 Door Closer

A hydraulic door closer is mandatory on fire-rated guest room doors:

Mounting: Concealed preferred for aesthetic cleanliness-

Adjustability: Variable closing force, backcheck, and delayed action

Standard: ANSI/BHMA A156.4 Grade 1—tested to 1,500,000 cycles

Certification: UL-listed for fire door assemblies

Closing force: EN3–5 for door widths up to 1250mm

2.4 Automatic Door Bottom Seal

A drop-down seal automatically engages when the door closes:

Blocks light, sound, and smoke

Essential for guest privacy and fire containment

2.5 Door Viewer (Peephole)

180° wide-angle anti-tamper viewer-

Installed at approximately 1500mm height-

2.6 Door Guard / Security Chain

U-type or retractable security chain-

For communicating doors: surface bolt with operating handle on interior side, flat plate on exterior-

2.7 Fire Evacuation Diagram

Mounted on interior side of guest room door

Fluorescent coating for visibility during power failure-

3. ANSI/BHMA Grading: Why Grade 1 Matters for Hotels

The ANSI/BHMA grading system classifies door hardware by performance under cycle testing, impact testing, and weight testing. Grade 1 is the highest performance level—and the minimum standard for 5-star hotels.

A Grade 1 lock tested to 1,000,000 cycles on a door that opens 100 times per day would last approximately 27 years. For a 5-star hotel operating 24/7, that durability margin is non-negotiable.

4. Why Fire-Rated Door Hardware Is Non-Negotiable

All guest room doors must be specified as complete “fire door assemblies” —the door, frame, hinges, lock, closer, and seals must be tested together as a system-.

Standard: GB 12955-2008 or UL 10C

Requirement: No hardware component may melt, deform, or fail during the fire-rated time

Anchor standard: Through-bolts (Chicago bolts) are the minimum—standard screws are insufficient

5. YALIS: Your Partner in 5-Star Door Hardware Solutions

With 17 years of door hardware manufacturing experience, YALIS has been the trusted door hardware supplier for luxury hotel projects worldwide.

YALIS Manufacturing Excellence

16+ years of professional door lock manufacturing

10,000 sqm automated factory campus

80,000 sets of door handles produced per month

ISO9001:2015 certified

Full in-house production: die-casting, CNC machining, polishing, quality inspection

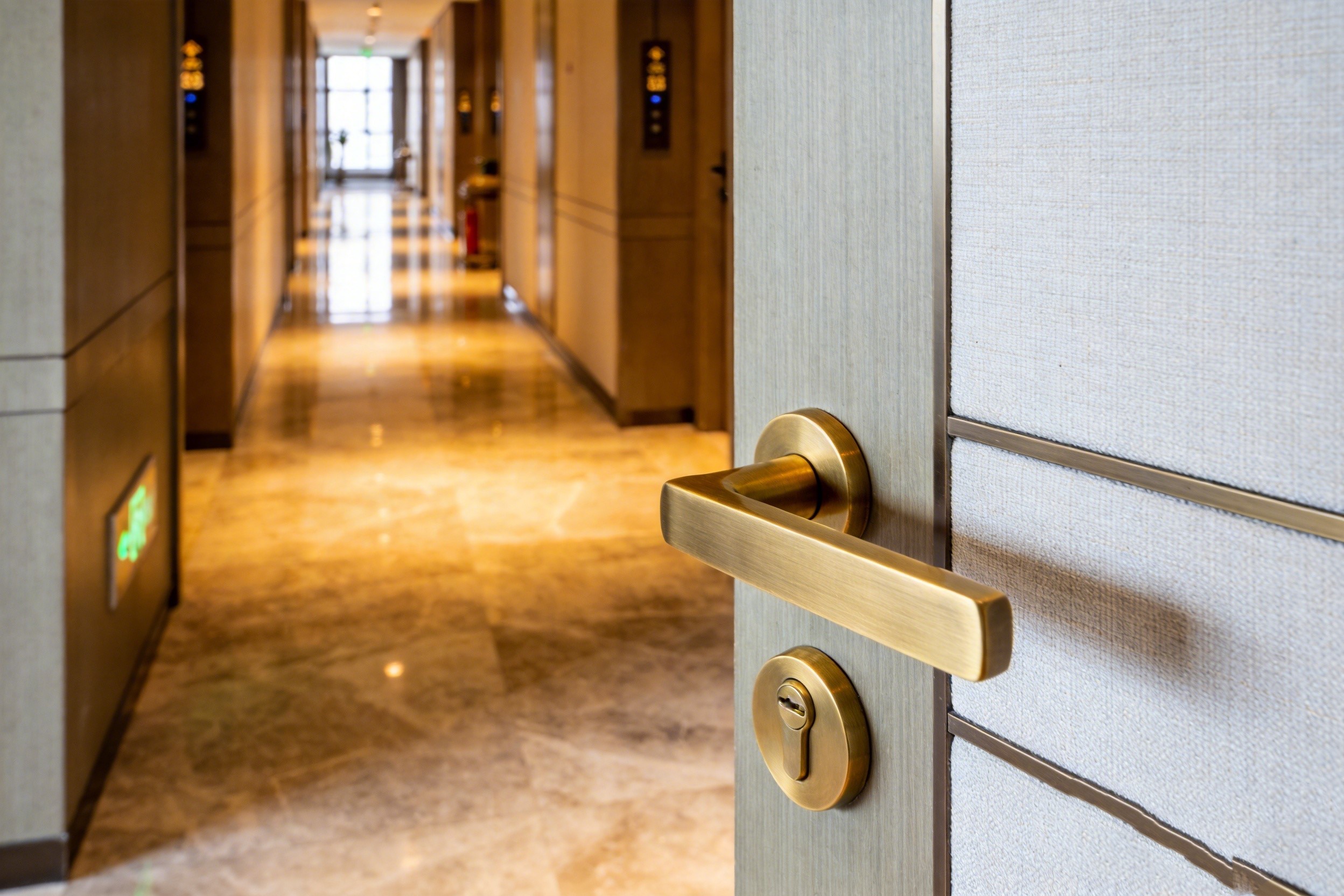

YALIS Door Handle Durability

YALIS door handles withstand more than 200,000 opening and closing tests—ensuring long-term use without deformation. Our door handles feature anti-violent push-down mechanisms and emergency unlocking functions for guest safety.

6. FAQ: 5-Star Hotel Door Hardware

Q1: What door hardware is required on a 5-star hotel guest room door?

A complete 5-star guest room door requires: electronic card lock, three 12-inch hinges, hydraulic door closer, automatic drop seal, 180° peephole, security chain, and fire evacuation diagram—all meeting ANSI/BHMA Grade 1 standards-.

Q2: Why is ANSI/BHMA Grade 1 specified for hotels instead of Grade 2?

Grade 1 hardware is tested to 1,000,000 cycles, 6 impact strikes, and 360 lbs of weight—far exceeding Grade 2‘s 400,000 cycles, 4 strikes, and 250 lbs.0

High-traffic hotels need the maximum durability Grade 1 provides.

Q3: Can I mix different brands of door hardware on a fire-rated door?

No. A fire-rated door must be tested and certified as a complete “fire door assembly”—door, frame, hinges, lock, closer, and seals must all be from a compatible system-.

Q4: How many hinges does a hotel guest room door need?

Three 12-inch hinges are standard for guest room doors-. The number is determined by door height and weight.

Q5: Should door closers be surface-mounted or concealed?

Concealed closers are preferred in 5-star hotels for aesthetic cleanliness-, though both options must meet ANSI/BHMA A156.4 Grade 1 and UL fire certification.

Q6: How durable are YALIS door handles for hotel applications?

YALIS door handles are tested to over 200,000 opening and closing cycles and feature anti-violent mechanisms to prevent damage from forceful use.

Q7: Does YALIS supply complete hotel door hardware packages?

Yes. YALIS provides complete door hardware solutions—from hinges and door handles to locks, closers, and accessories—for hotels, resorts, and commercial projects worldwide-.

Specifying door hardware for a 5-star hotel guest room is a system-level engineering decision—not a shopping list. Every component, from the electronic lock to the door handle to the concealed closer, must meet ANSI/BHMA Grade 1 standards and be tested as part of a certified fire door assembly.

With 17 years of manufacturing excellence, global project experience, and a commitment to quality at every production stage, YALIS delivers the door hardware solutions that 5-star hotels trust.

Ready to specify the right door hardware for your next hotel project? Contact YALIS for expert guidance and complete solution packages.
