Not all door hardware is equally forgiving. A door handle gets all the attention, but hinges determine whether a door stays aligned for years. This guide compares 3D adjustable hinges vs. fixed hinges on installation tolerance and maintenance convenience. YALIS brings you both options.
Part 1: What Are They?

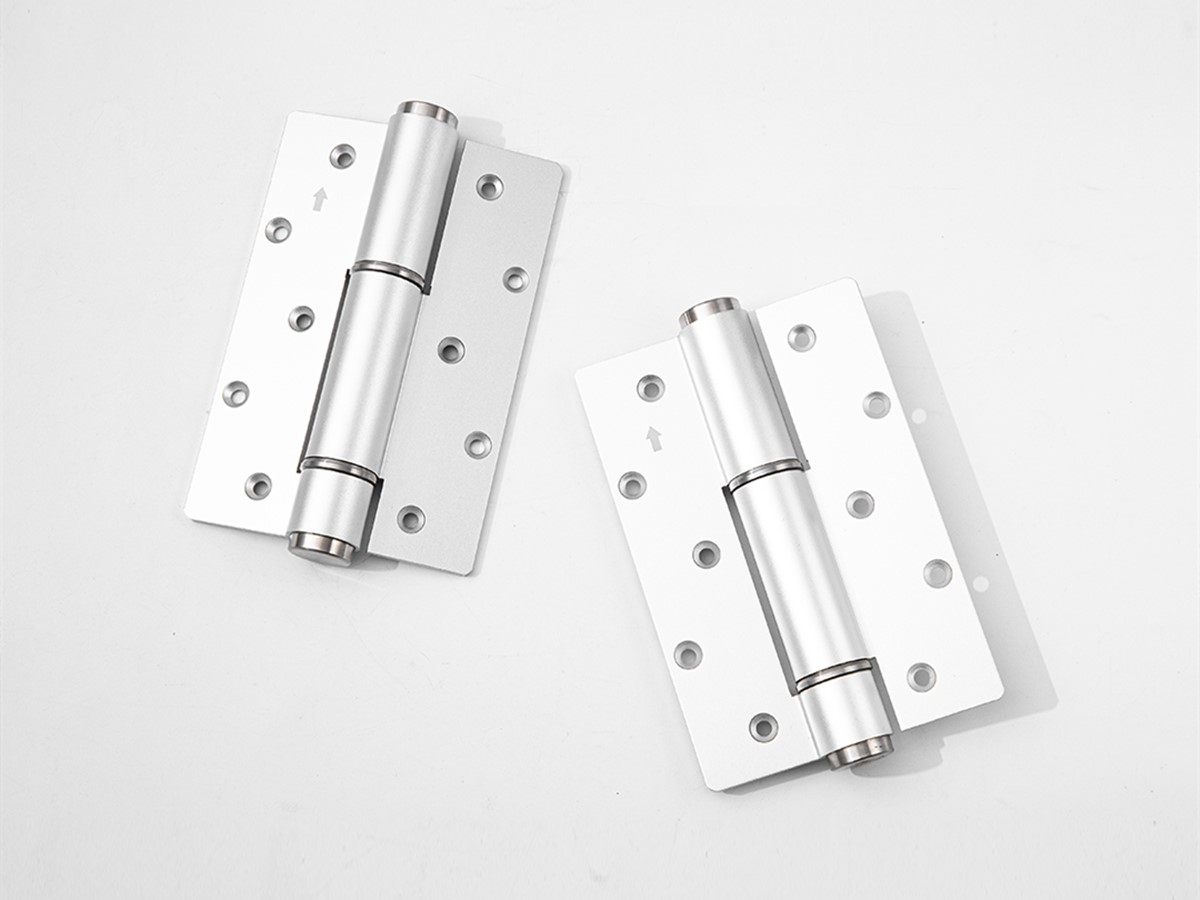

Fixed hinge – traditional two-leaf design, no adjustment after installation.

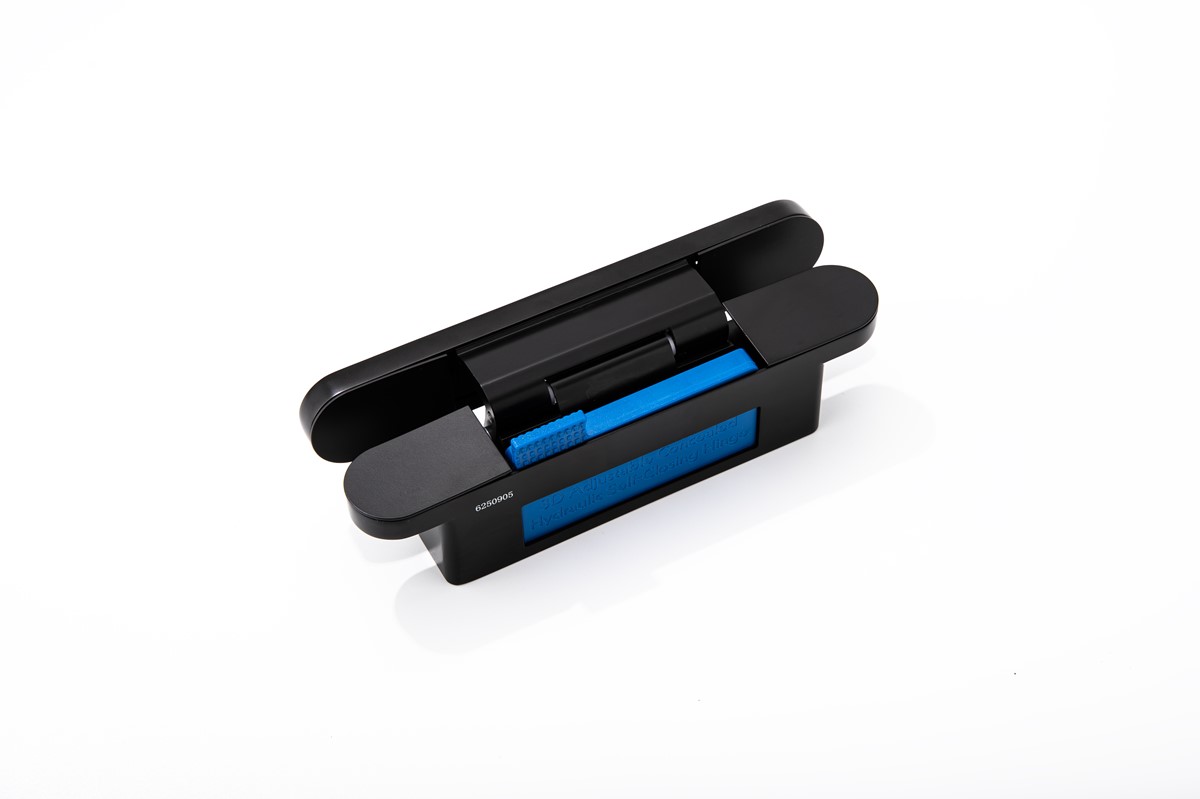

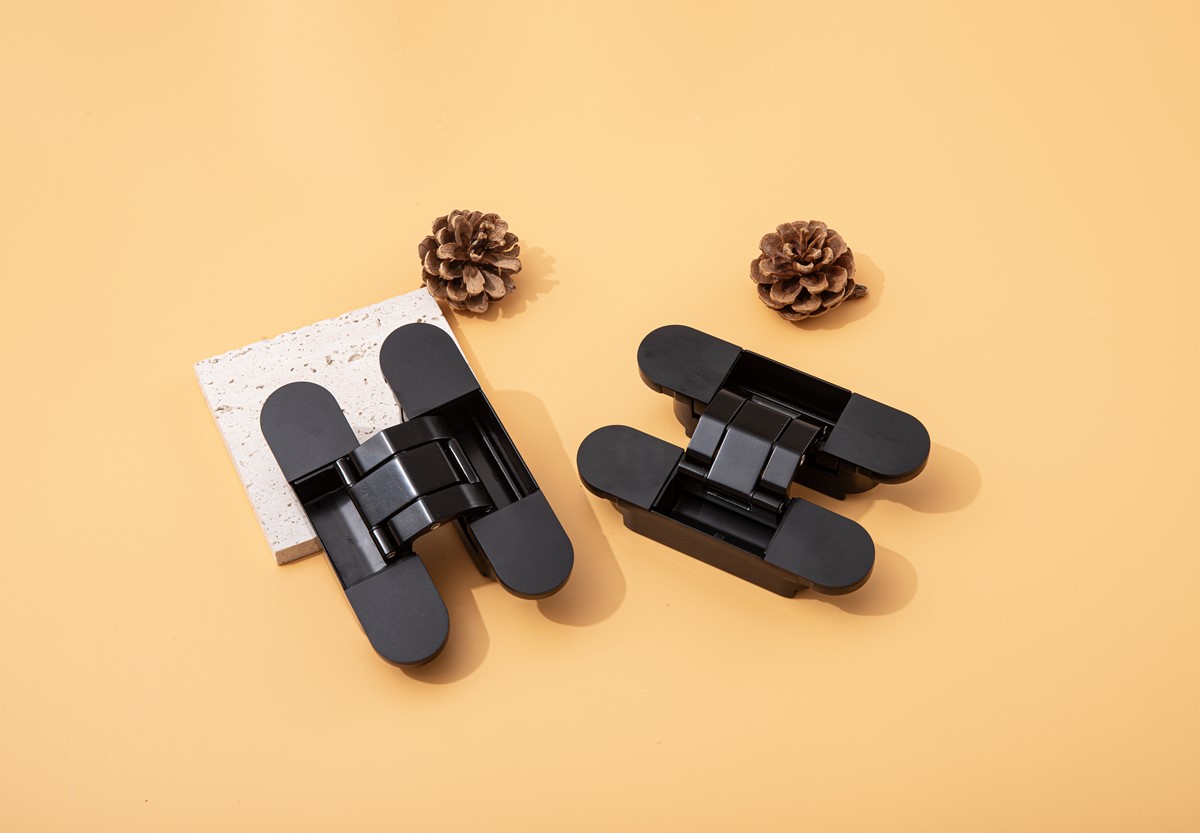

3D adjustable hinge – allows micro-adjustment in vertical (up/down), horizontal (left/right), and pressure (in/out) directions.
Part 2: Installation Tolerance
| Feature | Fixed Hinge | 3D Adjustable Hinge |
| Precision required | Very high (±1mm) | Loose (±3-5mm) |
| Frame/door deviation tolerance | Low | High |
| Routing error fix | Re-route or shim | Turn adjustment screws |
| Installation time | Longer | Shorter – rough install then fine-tune |
| Best for | New, precise frames | Old doors, non-standard frames, DIY |
Key takeaway: 3D hinges slash installation difficulty – ideal for DIYers and renovation projects.
Part 3: Maintenance Convenience
| Feature | Fixed Hinge | 3D Adjustable Hinge |
| Fix sagging door | Impossible (add shims or rehang) | Minutes with hex key |
| Seasonal wood movement | No compensation | Quick micro-adjust |
| Wear over time | Difficult to tighten | Re-tighten via screws |
| Tools required | Chisel, shims, drill | Hex key or screwdriver |
| Maintenance frequency | Major repair when problem appears | Annual check & tweak |
Example: A heavy wooden door sags 2mm after one year. Fixed hinge needs door removal and planing. 3D hinge – turn a screw, done.
Part 4: Other Comparisons
| Aspect | Fixed Hinge | 3D Adjustable Hinge |
| Load per hinge | 30-50 kg | 40-80 kg |
| Cycle life | 100-200k | 100-200k (quality units) |
| Appearance | Visible pin | Can be fully concealed |
| Cost per unit | $2-8 | $8-25+ |
| Popularity | Widespread | Rapidly growing |
Part 5: When to Choose Which?
Choose fixed hinge if:
Very tight budget
Factory-matched door and frame with high precision
Experienced installer
Low-use or temporary door
Choose 3D adjustable hinge if:
Residential interior doors (future sagging likely)
Old door frame replacement (irregular dimensions)
Hotel/apartment bulk renovation (reduce on-site adjustment)
Heavy solid wood or glass doors (more prone to sag)
Minimalist design (concealed 3D hinges keep door edge clean)
DIY / e-commerce customers (high tolerance for error)
Why YALIS 3D Adjustable Hinges?
3-axis adjustment – vertical ±2mm, lateral ±2mm, pressure ±1.5mm
304 stainless steel – EN1935 certified
50 kg load per hinge – 200,000-cycle tested
Fully concealed – clean look for modern doors
Also available: fixed heavy-duty hinges for entry and fire doors
YALIS offers OEM customization – adjustment range, finish, load capacity.
Frequently Asked Questions (FAQ)
Q1: What directions can a 3D adjustable hinge move?
Up/down (vertical), left/right (lateral), and in/out (pressure). Exact range varies by model.
Q2: My fixed hinge door is sagging. Can I fix it?
Yes, but it’s labor-intensive: add shims under the bottom hinge or remove and rehang. Severe sagging may require planing the door.
Q3: Are 3D hinges weaker than fixed ones?
No. Quality 3D hinges (like YALIS) are reinforced – often stronger than basic fixed hinges.
Q4: Can I install a 3D hinge myself?
Yes. Their high tolerance makes them DIY-friendly. Use a template for best results.
Q5: Do 3D hinges need regular maintenance?
Check alignment annually. Use a hex key to tweak if needed. Lubricate adjustment screws lightly to prevent rust.
Q6: Does YALIS offer samples?
Yes. Contact our team for samples, datasheets, and bulk pricing.
Q7: What door thickness works with concealed 3D hinges?
Typically 35-50 mm. Heavy-duty versions fit 50-70 mm solid wood doors.
Upgrade your door hardware with YALIS 3D adjustable hinges – install once, adjust forever.
Visit www.yalisdesign.com for the full hinge collection.
Post time: May-19-2026
