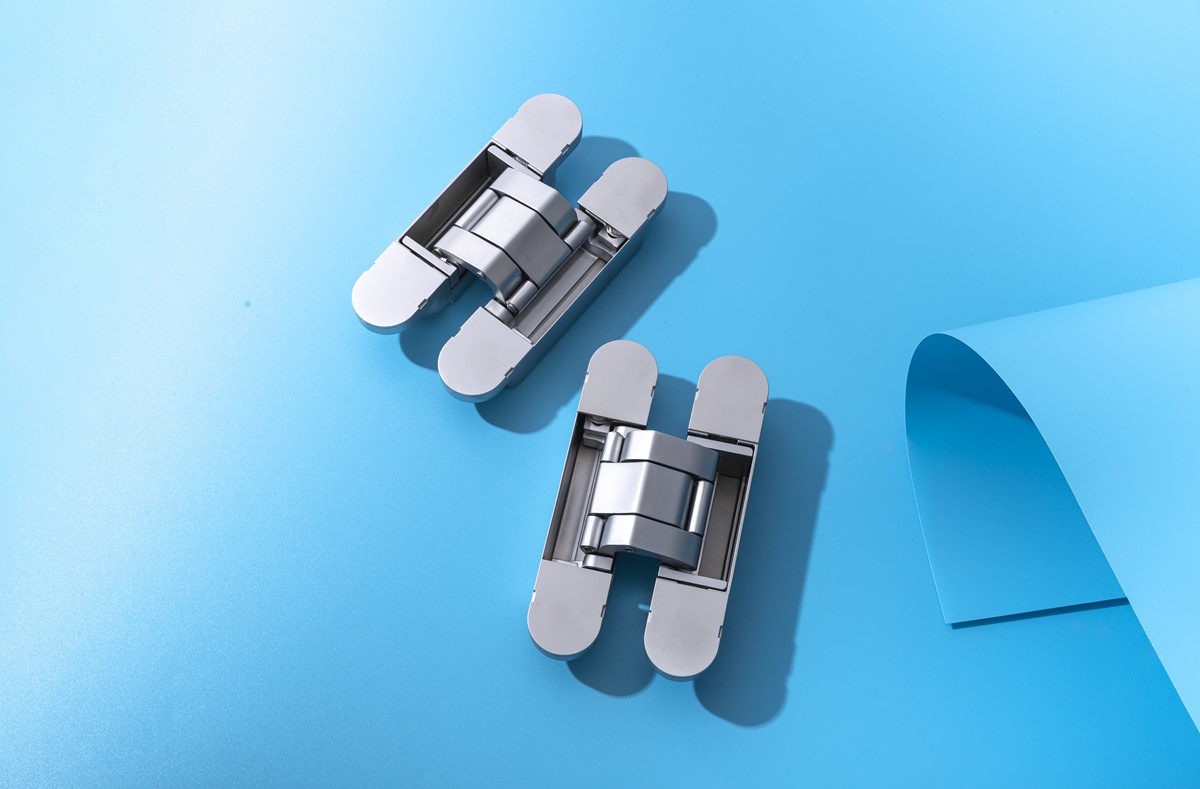

What Are 3D Adjustable Hinges?
A 3D adjustable hinge is a precision-engineered door hinge that allows independent adjustment in three dimensions—X (left/right/lateral), Y (up/down/height), and Z (in/out/depth)—after installation. Unlike traditional hinges that require door removal or shims to correct misalignment, 3D adjustable hinges enable micro-adjustments using built-in eccentric screws or adjustment screws. It is a high-performance concealed hinge solution widely used in high-end residential applications.
Also known as: 3-way adjustable hinges, 3D concealed hinges, 3D adjustable concealed hinges, or heavy-duty 3D hinges.
Core Functions and Adjustment Directions
| Adjustment | Function | Typical Range |
| X-Axis (Lateral) | Adjusts gaps between door and frame left/right | ±1.5mm ~ ±3mm |
| Y-Axis (Height/Vertical) | Corrects door sagging, prevents floor scraping | ±1.5mm ~ ±4mm |
| Z-Axis (Depth) | Aligns door flush with frame, solves protruding/recessed issues | ±1.5mm ~ ±3mm |
Additional functions: Adjustment without dismounting the door, 180° opening capability (on select models), and compatibility with heavy solid wood, glass, or aluminum-wood doors.
Key Technical Parameters
| Parameter | Standard | YALIS Performance |
| Cycle Life | ≥100k cycles (GB/T 32223) | 200k+ cycles (EN1906) |
| Salt Spray Resistance | 48h industry avg. | 72h+ (NSS test) |
| Load Capacity | 40kg (traditional) | 80-150kg (heavy-duty hinges) |
Why Material Matters
| Material | Features | Best for | YALIS Application |
| 3# Zinc Alloy | High strength, good formability | Daily residential use | All door handle series |
| SUS304 Stainless Steel | Extreme corrosion resistance | Coastal areas, outdoor doors | Premium custom lines |
| Aluminum-Magnesium Alloy | Lightweight, premium texture | Minimalist/glass doors | Minimalist series |
| Precision Steel | High accuracy, wear-resistant | Core transmission parts | Hidden hinge components |
Applications
Luxury residential: Minimalist doors, flush-mounted doors, frameless door systems – essential for achieving “wall-door integration”
Heavy doors: Solid wood doors, oversized doors, heavy glass doors – 3D hinges are engineered to distribute load evenly
Coastal/humid environments: SUS304 stainless steel hinges with 72h+ salt spray resistance
Commercial projects: Hotels, offices, showrooms – where quick installation and maintenance-free operation matter
Why 3D Adjustable Hinges Are Essential for Modern Doors
Concealed design: The hinge disappears when door is closed, achieving seamless wall-door integration – increasingly demanded in contemporary interiors
No structural damage: Hidden installation preserves clean frame lines
Long-term reliability: High load capacity + wear-resistant precision steel components – prevents sagging over years of use123
Flexible door compatibility: Works on wooden doors, glass doors, aluminum-wood doors, and ultra-narrow frame glass doors
How to Choose a Quality 3D Adjustable Hinge
Check material: SUS304 > zinc alloy for corrosion resistance and strength
Load capacity: Door weight + safety margin (≥80kg recommended)
Adjustment range: Larger ranges simplify installation, but ensure locking stability
Testing certifications: EN1906 / EN1935 or GB/T 32223 compliance
Brand reputation: Choose manufacturers with full in-house production and integrated door hardware systems
YALIS: The Industry Leader in 3D Adjustable Hardware Solutions
Jiangmen Yalis Intelligent Door Control Co., Ltd., operating under the IISDOO brand, is a comprehensive enterprise integrating R&D, manufacturing, and sales. Located in Jiangmen, Guangdong – China’s “Hardware Town” – the company has been a trusted name in door hardware manufacturing for 17 years. YALIS has a dedicated R&D team including appearance designers, structural engineers, and process engineers .

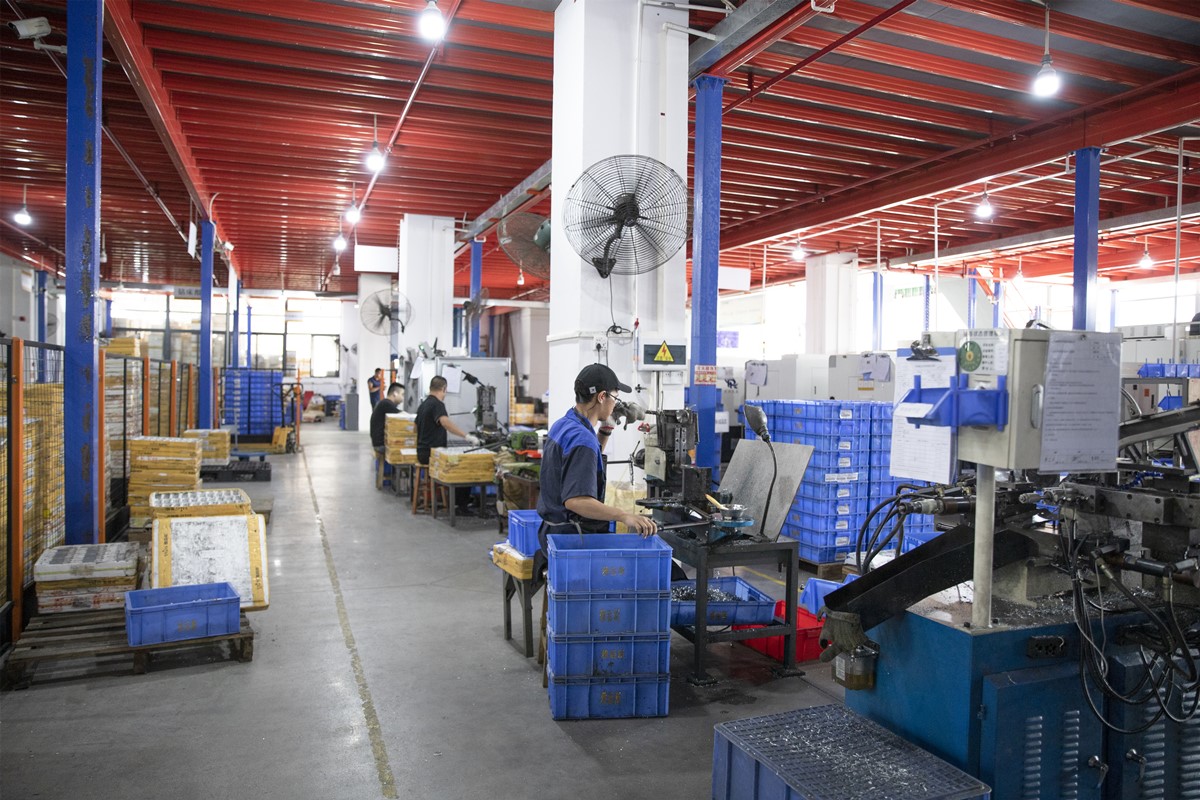

The company operates two specialized production lines: a professional lock manufacturing line with an annual capacity of 1 million high-quality lock sets fully complying with EN1906 standards, and a comprehensive door hardware line covering hinges, door handles, door stoppers, and accessories . Every product undergoes rigorous testing: 200,000+ cycle durability testing, 72+ hour salt spray testing, surface wear testers, and adhesion testers .
In 2020–2021, YALIS invested over $500,000 USD in automated production equipment, including auto CNC machines, auto die-casting machines (180T to 280T), auto drilling machines, and robot-arm polishing equipment – enabling 24-hour factory operation to meet large-volume orders while maintaining consistent quality standards . In 2024, the company invested additional capital to expand and upgrade manufacturing facilities in Jiangmen, officially rebranding to Guangdong Yalis Intelligent Door Control Co., Ltd.

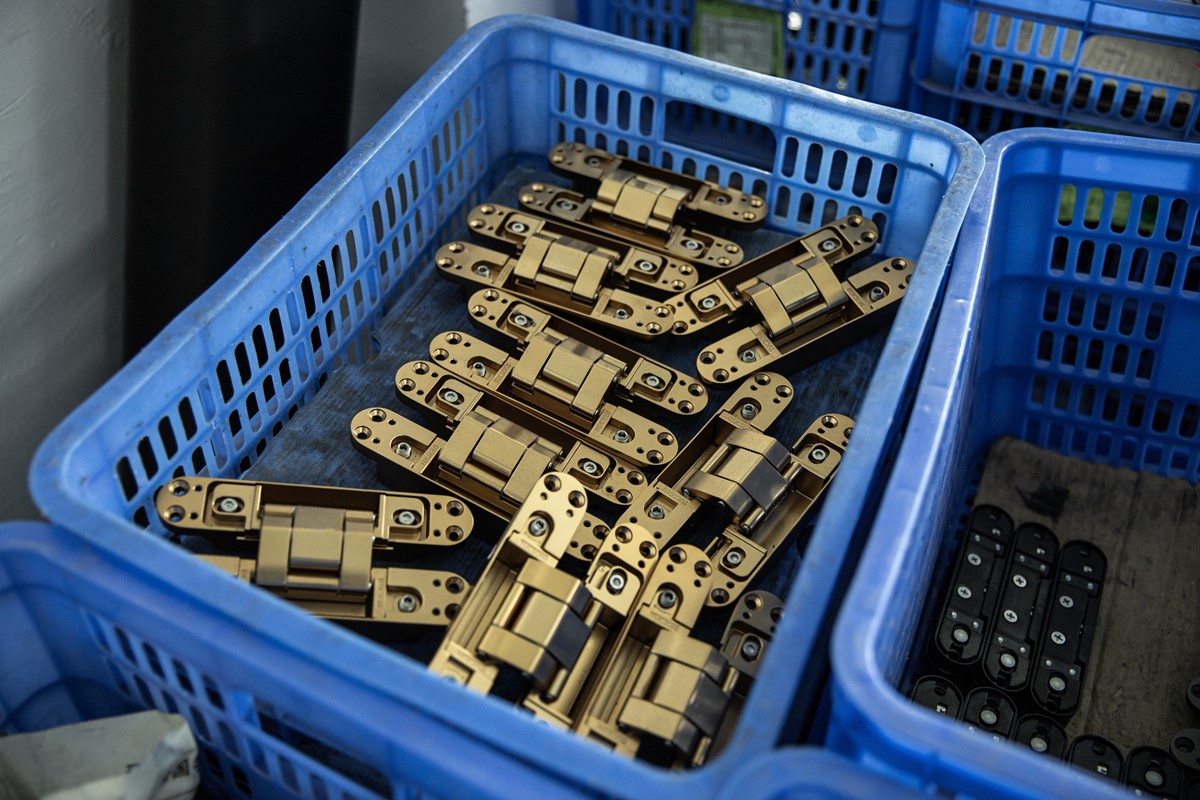

YALIS’s concealed 3D adjustable hidden hinges support heavy-duty doors from 80kg to 150kg, offering X/Y/Z micro-precision adjustment with nylon-coated latches for silent operation . The product matrix covers wooden doors, glass doors, aluminum-wood doors, and ultra-narrow frame glass door systems. The brand has exhibited at BAU (Germany), MosBuild (Russia), Thailand Architect, and Canton Fair (China), gaining recognition in European high-end markets . Whether you need door hardware for modern apartments, luxury villas, or smart homes, YALIS delivers aesthetics, durability, and seamless integration.
Frequently Asked Questions (FAQ)
Q1: Are 3-way hinges the same as 3D adjustable hinges?
A: Yes. “3D hinge” refers to three-dimensional adjustment (X/Y/Z axes). “3-way hinge” or “3-axis hinge” means the same: lateral, height, and depth adjustment. Always verify adjustment range and load capacity before purchasing.
Q2: Can 3D adjustable hinges support heavy solid wood doors?
A: Yes. High-quality 3D adjustable hinges, such as YALIS’s heavy-duty concealed hinge series, support 80kg to 150kg, making them ideal for tall solid wood doors, oversized doors, and heavy glass doors.
Q3: How do I maintain 3D adjustable hinges after installation?
A: Premium stainless steel hinges are virtually maintenance-free. Check screw tightness annually. For high-humidity environments, ensure the hinge has 72h+ salt spray certification.
Q4: Are 3D adjustable hinges suitable for glass doors?
A: Yes, but select hinges specifically designed for glass door applications. YALIS offers specialized solutions for frameless glass doors and ultra-narrow frame glass door systems.
Q5: Where can I purchase YALIS 3D adjustable hinges and matching door handles?
A: Visit the official website https://www.yalisdesign.com/ for product catalog, technical specifications, and authorized distributor information.
